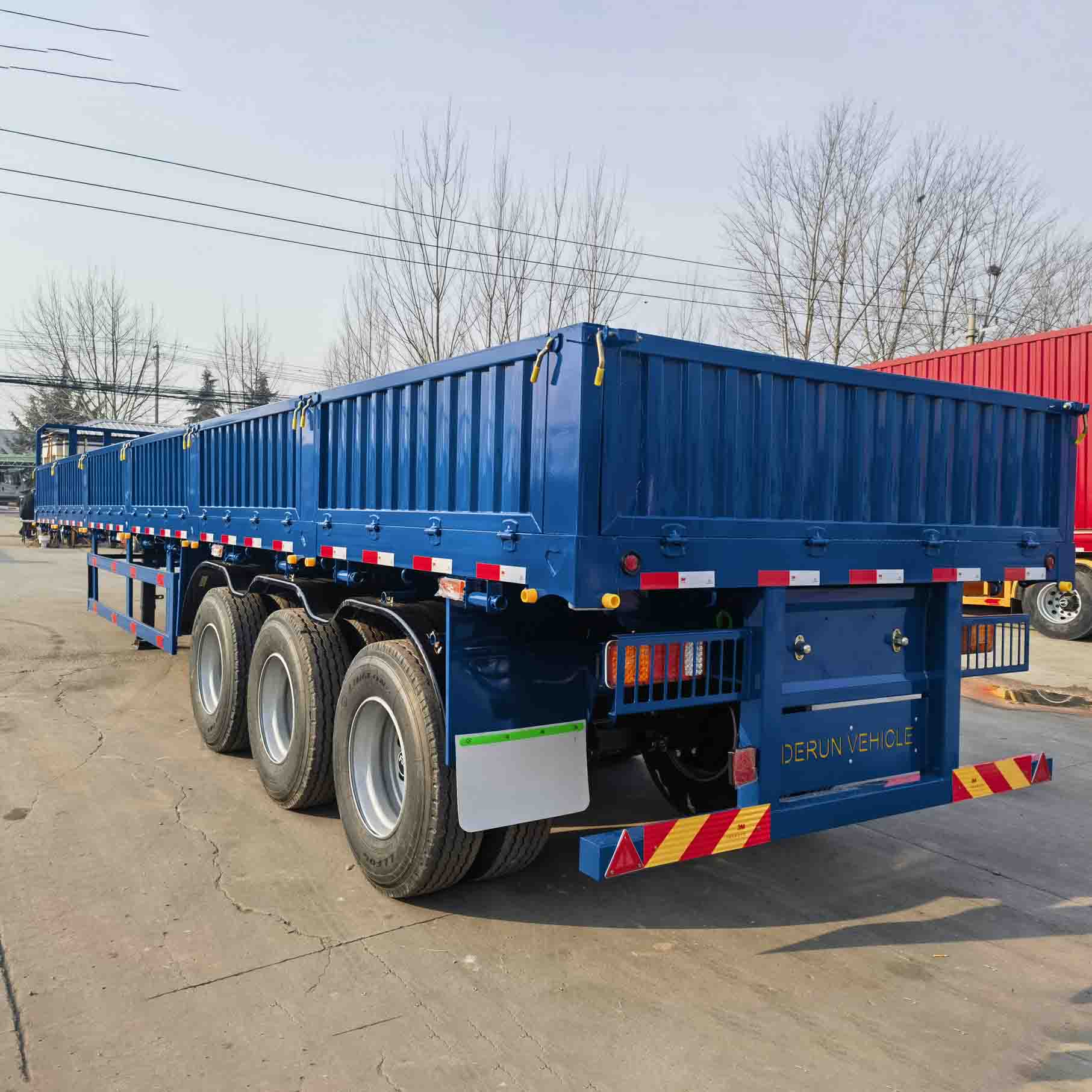

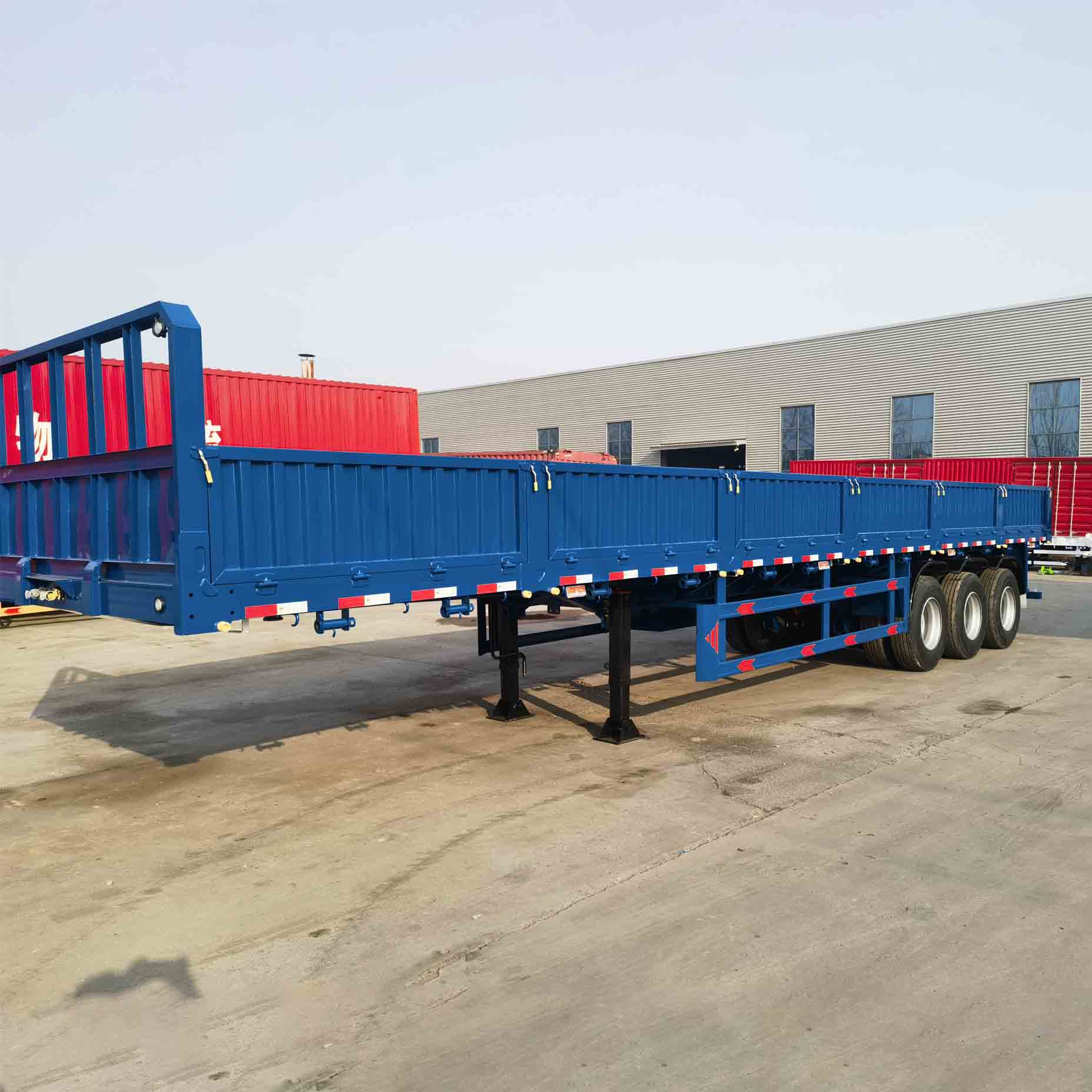

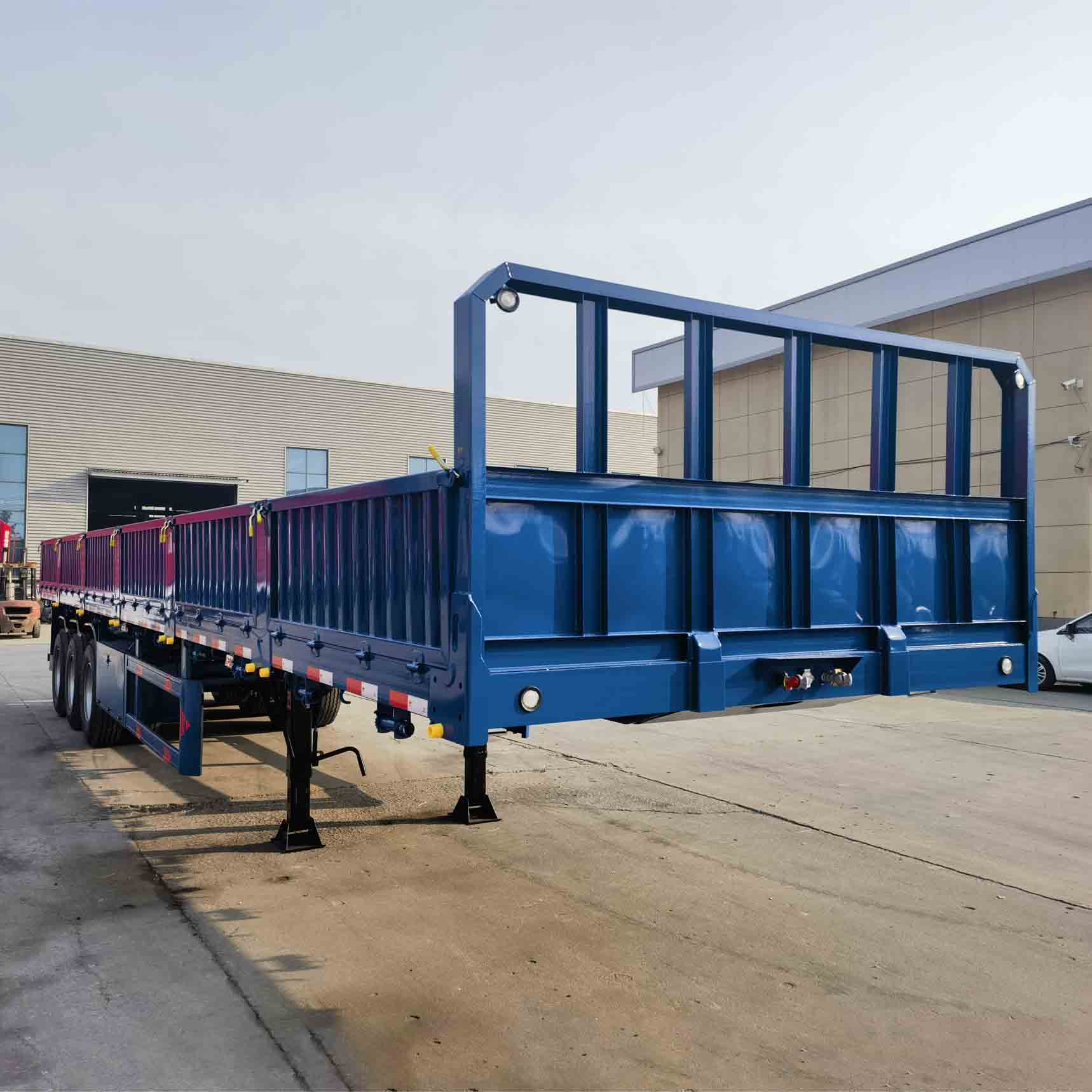

Designed specifically for the Algerian market, Derun three-axle dropside semi-trailer, as a high-end solution in the field of logistics and transport, has won wide acclaim in the market for its excellent design, sturdy structure and efficient performance. Designed for heavy-duty and long-distance transport, this semi-trailer is able to meet the transport needs of various complex road conditions and diversified cargoes.
The three-axledropside semi-trailer designed by Derun for the Algerian market is manufactured with advanced production technology and high-quality materials. Its body is made of high-strength steel, which is precision welded and subjected to strict quality testing to ensure the vehicle's load-bearing capacity and service life. At the same time, the trailer is also equipped with advanced suspension and braking systems, improving the smoothness and safety of driving.
|
Type |
Tri-Axle Drop Side Semi-Trailer |
||||
|
Parameters |
Dimensions |
Overall Dimensions (mm) |
L×W×H:12,600×2,650×2700mm The height can be adjusted by the specification of tractor |
||
|
Front wall |
1200mm |
||||
|
Drop side wall |
800mm height,thickness1.2mm |
||||
|
Weight |
Tare weight (kg) |
Approx.9000 |
|||
|
Max. Payload (kg) |
52,000 |
||||
|
Configuration |
Floor |
4mm check plate |
|||
|
Tire |
Type: 315/80R22.5, equip 14pcs per chassis including two spare tire; triangle brand. |
||||
|
Rim |
Type: 9.00, equip 14pcs per chassis including two spare rims; |
||||
|
Axle |
FUWA 13T*3 sets |
||||
|
King pin |
JOST 90#, bolt on type |
||||
|
Suspension |
Mechanical 10-leaf suspension, 90*16mm |
||||
|
Landing Gear |
JOST E100 |
||||
|
Brake system |
Air brake system,30/30 type, WABCO brake valve with ABS. |
||||
|
Air brake pipe connector |
Red and yellow gladhand valve |
||||
|
Electric system |
24V, LED lights. |
|
|
||
Tool box |
1 set |
|
||||
Side guardrails |
Left and right sides |
|
||||
Mudguard |
Straight mudguard |
|
||||
Spare tire carrier |
Equipped 2set per chassis |
|
||||
Container lock |
12 pcs |
|
||||
Rope hook |
Standard |
|
||||
Rope tightener |
Standard |
|
||||
Painting |
KTL electrophoresis + automatic powder spraying |
|
||||
Color |
Optional |
|
||||
Others |
Nameplate:Englishmodel 3units/bundle,byroroorbulkvessel Allthedetailsnotmentionedabove shouldbecomply withChinesestandard
|
|
Derun three-axle dropside semi trailer specially designed for the Algerian market has many details,including but not limited to:
Design of railing plate: The railing plate is made of high quality steel plate, which has good impact resistance and corrosion resistance. The height of the railing plate can be customised according to the customer's demand, in order to meet the loading demand of different goods.
Frame structure: the frame adopts box structure design, which effectively improves the vehicle's carrying capacity and torsional strength. Meanwhile, the bottom of the frame is equipped with an anti-skid device to ensure the stability of the goods in the transport process.
Suspension system: air suspension or leaf spring suspension system is adopted, which can be adjusted according to the road condition and cargo weight to ensure the smoothness and comfort of travelling.
Braking system: equipped with advanced ABS anti-lock braking system, which improves the braking performance and safety of the vehicle.
Tyre Configuration: High-quality tyres with good abrasion resistance and anti-skidding, improving the driving stability and safety of the vehicle.
DERUN three-axle dropside semi-trailer is widely used in the long-distance transport of various goods, such as industrial products, agricultural products, building materials and so on. Its sturdy structure and efficient performance can meet the transport needs of various complex road conditions and diversified goods. In addition, the truck can also be used in special areas such as dangerous goods transport, providing a comprehensive solution for the logistics and transport industry.
